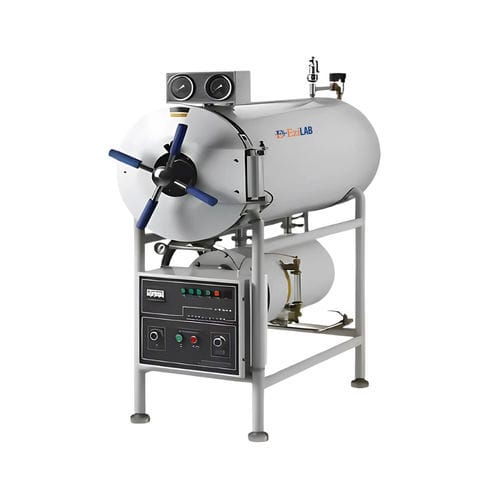

Horizontal autoclave EZL-CH81

laboratoryprogrammableautomatic

Horizontal Autoclave EZL-CH81 is a front loading cylindrical autoclave designed to meet large capacity sterilization needs with 150-liter chamber capacity. It is a programmable cylindrical vessel that allows for an automatic steam sterilization with precise cycles operating within 0 – 60 minutes timer range with a working temperature range of 134°C. The chamber is made of a stainless steel for increased durability and reliability with an auto-protect function to automatically cut-off the power during inadequate water supply while in process. Features Stainless steel interior and exterior to increase durability and reliability Standard working temperature 134°C Front loading cylindrical autoclave design Automated drying function Automatic pressure control switch Automatically controlled sterilizing process, easy to operate Over – temperature, over – pressure and auto – protect functions Automatic water level cut-off Safety audible and visible alarms Digital temperature controller Silicon rubber door gasket Door cannot be opened until the pressure in the chamber is reduced to 0.027MPa Safe door lock system ensuring protection during sterilization Control system automatically adjusts steam inlet and outlet according to chamber temperature Specifications Working Pressure - 0.22MPa Drying Time - 0 – 60 minutes Heat Average - ≤ ±2°C Power - 9 KW Power Supply - AC 380V, 50Hz Chamber Dimension (ɸ×D) - 440 ×1000 mm Package Dimension (L×W×H) - 1550×750×1850 mm Net Weight - 240 Kg Gross Weight - 320 Kg
