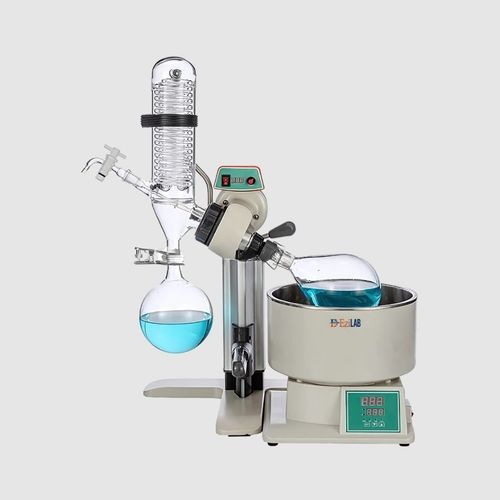

Laboratory evaporator EZL-RE21

rotaryvacuum

Rotary Evaporator EZL-RE21 is an entry level evaporator that meets the essential needs in economic evaporation and is developed with high quality standards. Manual lift handling can be done with one hand for precise positioning of the glassware. The unique 1L bath design provides fast heat up, allowing for quicker experiments. Bath heats up to 99°C, adding versatility by allowing use of water or oil. It is designed for ease of use, while maintaining the highest level of safety. This equipment includes a digital display to monitor and control rotation speed parameters. Specifications Rotary Bottle - 0.5 to 2 L Collecting Bottle - 1 L Rotary Speed - 10 to 200 rpm Evaporating Speed - 20 ml/min Achievable Vacuum - 0.098 Mpa Bath Size - 260×140 mm Bath Volume - 7.4 L Elevating Stroke - 100+150 mm Temperature Range - Rt - 99°C Ambient Temperature - 5°C - 35°C Display - Digital display Speed Setting - Knob setting Function Of Lifting Table - Gliding lift + Manual lift Condensing Tube - Vertical type water refrigerating Vacuum Sealing - Double sealing Teflon Rotary Motor Power - 25 W Heating Power - 1.5 Kw Power Supply - 220V, 50/60Hz or 110V, 60Hz Dimension (L×W×H) - 560×320×660 mm Weight - 9.5 Kg Features Double sealing with Teflon and fluorous rubber to ensure high vacuum degree Air extraction nozzle of condenser is set down, and it is safer after connection with vacuum pipe Building block design is easily to be extended Easy and smooth operation of lifting and moving PID controlled temperature operation Separation of bath and mainframe makes configuration flexible High rated condenser with exceptional cooling properties Quicker action with motorized lift
