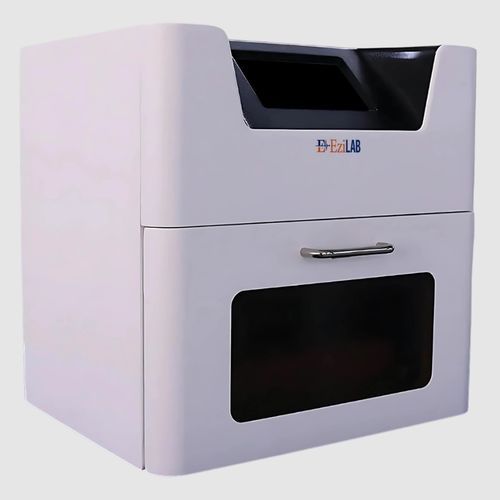

Clinical diagnostic nucleic acid extractor EZL-NS102

fully automated

Nucleic Acid Extraction System EZL-NS102 is a completely automated system for extracting and purifying DNA from a range of sources. In just a few minutes, this procedure can handle numerous samples each day and offer quick, consistent, and repeatable findings. In a single run, this small device can handle 32 big volume samples up to a needed quantity. This device is a turnkey solution that provides lab with everything you need to automate high speed purifications. Features Convenient throughput up to 32 samples in 15 – 40 mints 7-inch touch screen, easy to use console UV dis-infection function Archival quality DNA or RNA Automatic control system User defined cracking and elution temperature Fast purification process Reproducibility with magnetic rods Plate re-orientation Lidding and de-lidding Free programming to meet the different needs of the reagent Specifications Sample Capacity - 32 samples Sample Volume - 20 to 500 µl Working Volume - 20 µl to 1000 µl Sample Throughput - 1 to 32 Extraction Time - 15 to 40 min/round Extraction Method - Magnetic Bead Recovery Magnetic Bead Recovery - > 98% Extracting the difference between holes - CV ≤ 3% Heating Temperature - 8 independent heating modules, customize lysis and elution temperature Oscillating Mixing - Low, medium and high 3 gears are adjustable and fluctuation range can be adjusted with the reagent volume Reagent Type - Magnetic bead open platform Internal Program - Can store up to > 100 groups of programs Built-in Air Duct - No UV Radiation - Yes Package Size (W×D×H) - 580×510×700 mm Gross Weight - 51 kg
