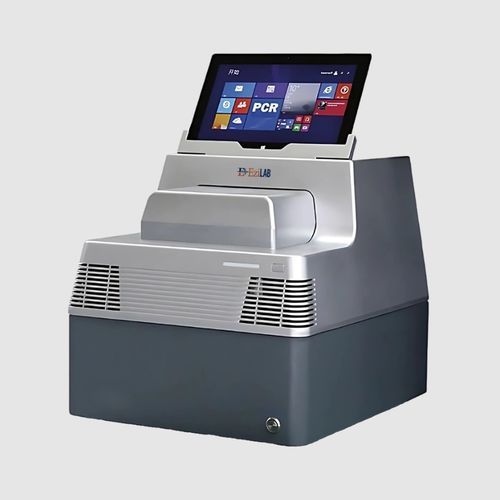

Gradient PCR system EZL-PC171

fluorescence96-wellcompact

Quantitative PCR Detection System EZL-PC171 is a fully integrated fluorescence PCR amplification and data analysis system. It tests up to 96 samples within 5.5s optical scanning for 6 channels fluorescence detection operating under 105°C temperature range. The instrument operates in a 500 – 800nm detection wavelength range with full plate and designated line scanning. Large LCD touch screen has quick access for multiple functions with one-touch commands and built-in diagnostics assist in trouble shooting. Features Full plate scanning and designated line scanning Absolute quantitative automatic analysis Melting curve analysis 6 independent temperature zones Unique bottom detection, compatible to reaction volume down to 5µl LED excitation light source long service life Multi-channel cross talk calibration Automatic open and close and lid prevents T reagent evaporation Easy and convenient operation High application versatility Sensitive data analysis Automatic control based on liquid level Adjustable temperature range Applications The device is used for quantitative recovery of DNA and RNA from samples, including cell culture, raw material, in various fields of laboratories, pharmaceuticals, biological institutions etc. Specifications Reaction Volume - 5 – 100µl Channel - 4 Detection Wavelength - 500 – 800nm Excitation Wavelength - 300 – 800nm Module Temperature Range - 4 – 105°C Ramp Rate - 4°C/s Temperature Control Accuracy - ± 0.1°C Temperature Uniformity - ≤ ±0.3°C Temperature Control Mode - Block and tube mode Gradient Temperature Range - 1 – 36°C Hot Liquid Temperature Range - 30 – 110°C Fluorescence Detection Repeatability - 0.05 Scanning Time - 5.5s
