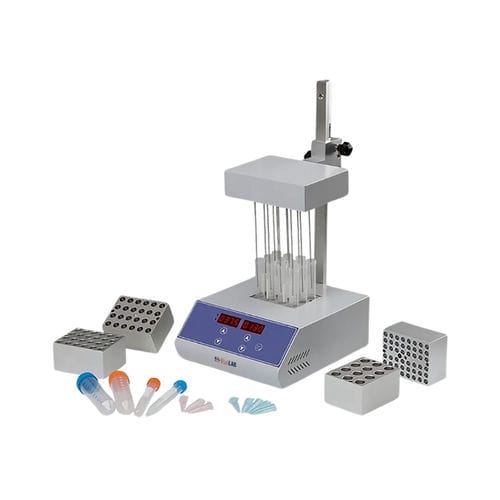

Sample concentrator EZL-SC121

gas

Sample Concentrator EZL-SC121 is used for preparing samples for various experiments. It has a temperature range of + 5°C to 160°C, a time range of 1 minute to 99 minutes and 59 seconds. The operations are controlled by a microprocessor controller and PID control system for the efficient concentration of multiple samples at the same time. High purified aluminum is used as the medium of heating the samples. Features High accuracy with a wide range of control management Blowing many samples simultaneously Easy to set up and easy to use and definitive in function Highly precise and having temperature control property Maximum Gas Usage is 15 L/min for accurate results It has 1 block to accommodate the samples It can heat up the samples with temperature range of + 5°C to 160°C Specifications Temperature Range - RT+ 5°C to 160°C Temperature Accuracy (@40 ℃) - ± 0.5℃ Temperature Accuracy (@120 ℃) - ±1℃ Temperature Uniformity - ± 0.5℃ Display Accuracy - 0.1℃ Time Range - 1 to 99 h 59min/∞ Heating Time - ≤ 15min(from 25℃ to 160℃) Needle Length - 150mm Maximum Gas Usage - 15 L/min Maximum Gas Pressure - 0.1 Mpa Block Quantity - 1 Maximum Power - 300W Voltage - AC220V or AC110V/50 to 60Hz Dimension ( W x L x H ) - 260 x 220 x 450mm Weight - 6.0kg Applications It is used in some techniques like drug screening, hormone analysis, liquid phase and mass spectrometry, in the analysis of sample preparation. It is used in commodity inspection, food, environment, pharmacy, biological product and other industry
