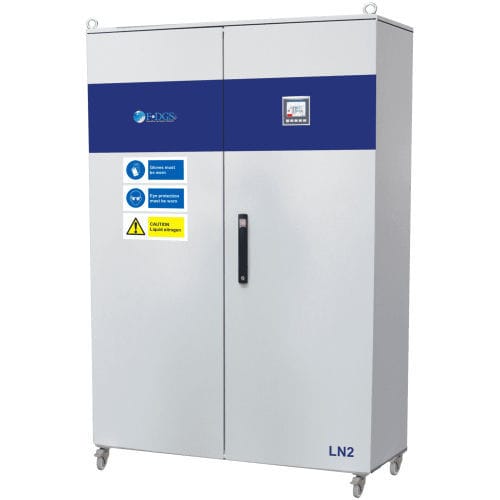

Nitrogen generator CRYOGEN.10

liquidlaboratorymedical

Utilising a reliable ‘Cryo-refrigerator’ design of cold head technology and helium compressor, the nitrogen gas is then produced using the PSA technology which is cooled to 77K (-196°C) to produce liquid nitrogen. The Generators are controlled using the latest in HMI touch screen technology to display the process in real-time, showing the liquid level of the dewar, PSA nitrogen production giving a fully automated system at the touch of a button with remote access for diagnostic control. The liquid nitrogen can be dispensed using a 1.5 meter vacuum insulated hose. With cooling water or water chiller supplied, the system can operate up to +52°C ambient temperature, making it suitable to operate everywhere in the world. Advantages product CryoGen Generation Plants is your reliable and efficient alternative to conventional Liquid Nitrogen supplies. Taking away the on-going costs, safety considerations of deliveries, transportation of traditional liquid gas supplies. Your on-site Liquid Nitrogen systems will be some of the most advanced and intelligent available. The control system gives the user all the information necessary to ensure an efficient and consistant supply of Liquid Nitrogen and nitrogen gas are always available. From the process to flow and alarms, including automatic operation, Trend graphs, service alarm and service records page, there is simply no other Liquid Nitrogen System. Characteristics Intelligent color touch screen to provide simple and user friendly management of all functions of the unit Fully regenerative PSA technology with oil free air compressor Helium Compressor Water cooled, water chiller required LN2 Dewar Liquid Level sensor
