Stimulation electrode ERG-Jet™
ERGmedical

stimulation electrode
stimulation electrode
stimulation electrode
stimulation electrode
stimulation electrode
stimulation electrode
stimulation electrode
stimulation electrode
stimulation electrode
Add to favorites
Compare this product


Characteristics

Applications
stimulation, medical, ERG

Description

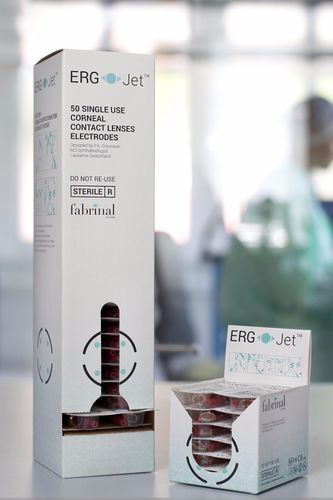

The ERG-Jet is a corneal contact lens incorporating an electrode that captures the electro-retinogram, ERG, generated by the light stimulation of the Human or animal* retina. The ERG-Jet is a plastic lens with a concave shape. A thin gold ring on the inside of the lens allows the detection of the electrical signal. A conductive wire transmits the electrical signal to a preamplifier and a data processing device. The ERG-Jet is used to support diagnostic systems for anomalies of the eye by transmitting the retinal electrical signal. The ERG-Jet is also appreciated in the veterinary* field thanks to its simplicity and its smaller size compared to some competing products. *animal use is out of the scope of the medical device according to MDD 93/42 and MDR 2017/745 LENTILLE F-06, SPÉCIFICATION Diameter : 12 mm (1/2 ‘’ ) Wire length : 1000 mm ( 39 ‘’ ) Radius of curvature : 7.90 mm Female connection : DIN 1.50 mm Design : P. A. Grounauer M.D. PACKAGING The ERG-Jet lens is sold in a sterile blister pack; single use only. Distributors Packing : 50 pieces or 12 pieces.
