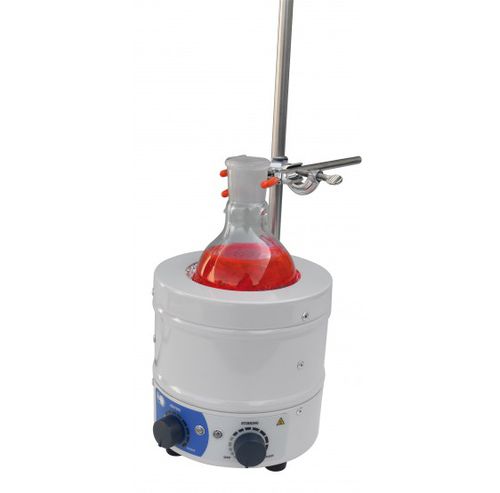

Analog laboratory heating mantle MF

with magnetic stirrer

FALC developed these compact stirring / heating mantles on the ground of many years of experience, in order to heat and stir matrasses simultaneously or separately. FALC developed these compact stirring / heating mantles on the ground of many years of experience, in order to heat and stir matrasses simultaneously or separately. These heating mantles comply with the European Safety Standards and feature a cylindrical body in steel, painted with acidproof epoxy paint; resistances are built in a ceramic fiber block and the body is fitted with an aluminium calotte, covered with glass fiber cloth, which insulate the item very well, even in case of matrass casual breaking. Heating mantles are completed by an ON / OFF switch with green light, with a graduated thermoregulator for temperature adjusting and control with yellow light and with a step electronic converter for RPM regulation with green light indicator of the stirring function. Moreover the instrument is fitted with a clamp on the back. Item - 625.0510.02 Temperature - +350 External dimension - mm 205x190 Power - V/Hz 230/50-60 Weight - Kg 2.8 Security class - 0 Protection class - IP 32 Variable speed - rpm 100-2500 Motor Power - 20 Flask - ml 250 Precision on the plate - °C ±5 Heating res. capacity - W 180 Stirring bar suggested ø - mm 6x20
