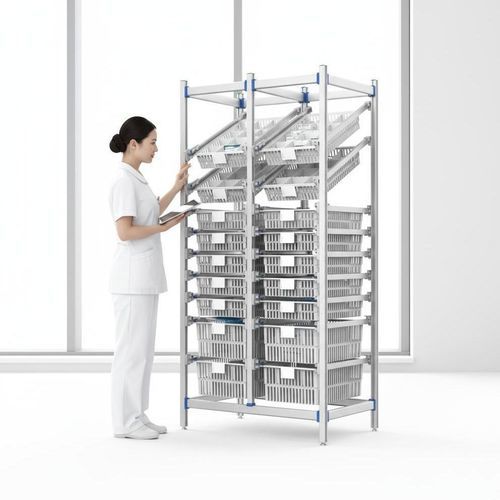

Aluminum storage rack FG-P-4009F02
modularhigh-density

Aluminum storage rack - FG-P-4009F02 - Fangge Medical - modular / high-density
Aluminum storage rack - FG-P-4009F02 - Fangge Medical - modular / high-density
Aluminum storage rack - FG-P-4009F02 - Fangge Medical - modular / high-density - image - 2
Aluminum storage rack - FG-P-4009F02 - Fangge Medical - modular / high-density - image - 3
Aluminum storage rack - FG-P-4009F02 - Fangge Medical - modular / high-density - image - 4
Aluminum storage rack - FG-P-4009F02 - Fangge Medical - modular / high-density - image - 5
Add to favorites
Compare this product


Characteristics

Options
modular, aluminum, high-density

Description

Core Advantages:  High-strength anodized aluminum frame with dual-tilt basket system. Features ISO 600×400mm modular design, ±20mm self-leveling feet, and ergonomic access. Customizable for clinical workflows. Partner with us for global solutions. Product Performance: • Anodized aluminum corrosion-resistant frame • Seamless non-porous medical-grade surface • ABS injection-molded structural joints • ISO 600×400mm ventilated basket system • Dual 65° tilted shallow baskets with tilt stops • Adjustable dividers for multi-category storage • External 58×90mm + internal 42×65mm label frames • 2° tilted slide-out mechanism with casters • Shallow basket: 100mm, deep basket: 200mm • ±20mm anti-slip adjustable base Dimensions: • Overall dimensions: 985×628×2000mm • Shallow basket height: 100mm • Deep basket height: 200mm • Label frames: 58×90mm (external), 42×65mm (internal) • Leveling feet adjustment range: ±20mm Application Scenarios:  Optimized for hospital pharmacies, supply rooms, and medical logistics centers. Dual-tilt baskets enable quick item visibility, while modular design maximizes storage density. Stable on uneven floors for high-traffic clinical environments.

VIDEO
