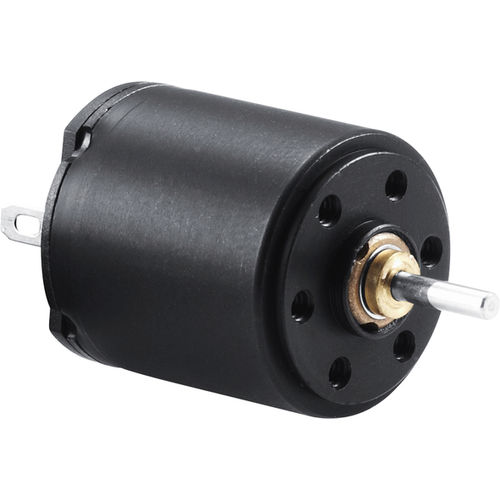

Medical micromotor 1516T0 seriesDC
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Operation
- DC
- Speed
12,800 rad.min-1, 12,900 rad.min-1
(2,037.2 rpm, 2,053.1 rpm)- Length
15.8 mm
(0.6 in)- Head diameter
15 mm
(0.6 in)
Description
Precious Metal Commutation
Nominal voltage: - 6 ... 12 V
Torque up to (max.): - 0,97 mNm
No-load speed: - 12.900 min⁻¹
Stall torque: - 1,61 mNm
Diameter: - 15 mm
Length: - 15,8 mm
Catalogs
Drive Systems | 2020-2021
656 Pages
