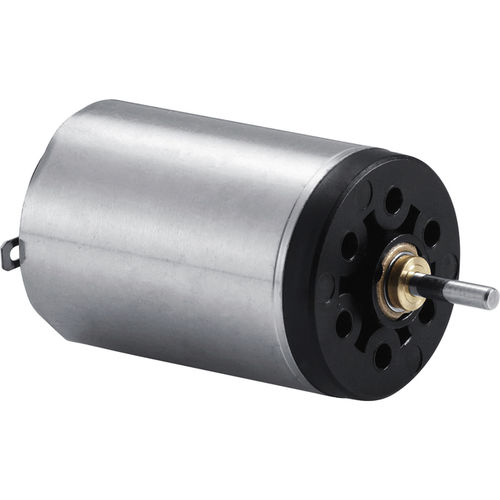

DC micromotor 1624T0 seriesmedicalelectric
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Operation
- electric, DC
- Speed
Max.: 14,400 rad.min-1
(2,291.8 rpm)Min.: 10,500 rad.min-1
(1,671.1 rpm)- Length
23.8 mm
(0.9 in)- Head diameter
16 mm
(0.6 in)
Description
Precious Metal Commutation
Nominal voltage: - 3 ... 24 V
Torque up to (max.): - 2 mNm
No-load speed: - 14.400 min⁻¹
Stall torque: - 5,16 mNm
Diameter: - 16 mm
Length: - 23,8 mm
