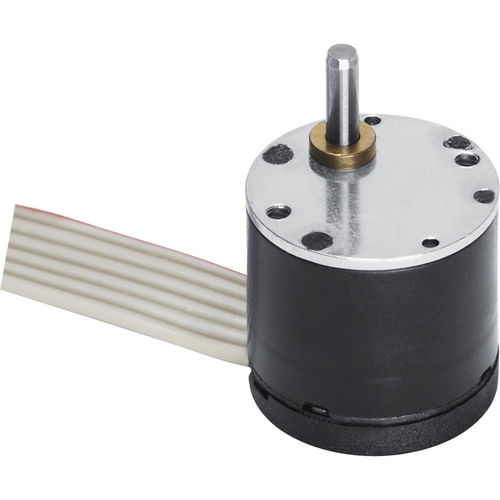

Medical industry gear-motor 1512U0 seriesDC
Add to favorites
Compare this product
Characteristics
- Applications
- medical industry
- Current type
- DC
- Rotational speed
13,400 rad.min-1, 14,300 rad.min-1, 15,500 rad.min-1
(2,132.68 rpm, 2,275.92 rpm, 2,466.9 rpm)
Description
Precious Metal Commutation with integrated Encoder
Nominal voltage: - 3 ... 12 V
Continuous torque: - 30 mNm
No-load speed: - 15.500 min⁻¹
Lines per revolution: - 8
Encoder channels: - 2
Intermittent torque: - 50 mNm
Reduction ratio: - 6 ... 324
Diameter: - 15 mm
Length: - 14,3 mm
