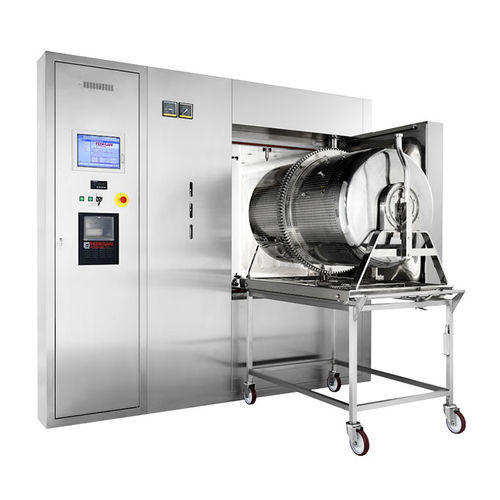

Sterilizer for the pharmaceutical industry

saturated steamfloor-standingautomatic

Thanks to a wide experience in the pharmaceutical industry, Fedegari has developed a special sterilizer addressed to elastomeric closures treatment. This process equipment can perform washing, rinsing, siliconizing, sterilizing, drying and automatic unloading of stoppers in a sterile area. All these processes are managed by Thema4 process controller. The stopper treatment autoclave uses a drum with a special magnetic coupling, which guarantees more space in the chamber. As for Fedegari washer sterilizer (FOWS) this is a dual-purpose unit: when is not running as a stopper treatment it can be used as a normal moist-heat sterilizer. DESIGN AND TECHNICAL FEATURES AISI 316L stainless steel chamber. Chamber internal surface is mechanically polished and complies with rigorous pharmaceutical standards, with a roughness Ra <0,4 μm. 6 PT100 RTD temperature sensors to monitor chamber and product temperature (3 flexible, 2 fixed + 1 located in the door-chamber jacket). Two doors with hinged opening systems to cope with available space in the smartest possible way (unloading side comes with semi-automatic door when chute is installed). KEY BENEFITS Dual-purpose unit: saturated steam sterilizer or elastomeric stopper processing. Double option for unloading in sterile area. Rotating drum with magnetic coupling: no obstruction in the chamber. APPLICATION FIELDS Stopper washing, siliconizing and sterilizing. Solids material sterilization. Porous material sterilization. Vial sterilization. BASKET Thanks to a special engineering, rotating AISI 316L stainless steel drum guarantees the best performance when running washing, siliconizing and drying cycles.
