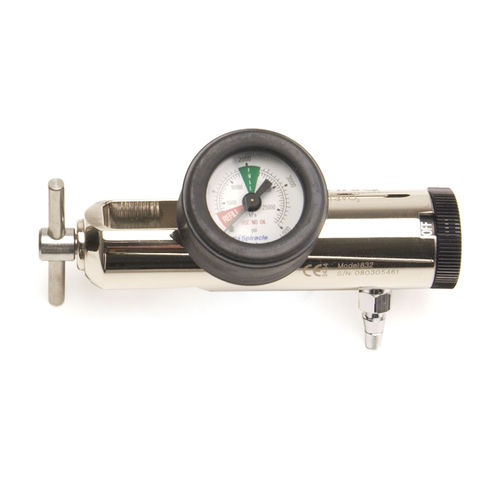

Oxygen pressure regulator 833 BRAVO2medicalsingle-stagequick-connect
Add to favorites
Compare this product
Characteristics
- Fluid type
- oxygen
- Applications
- medical
- Number of stages
- single-stage
- Connection type
- quick-connect
- Features
- high-flow
- Other characteristics
- with flow selector, Pin Index
- Flow
Max.: 25 l/min
(6.6 us gal/min)Min.: 0 l/min
(0 us gal/min)- Inlet pressure
Max.: 206.7 bar
(2,997.9 psi)Min.: 34.5 bar
(500.4 psi)- Weight
0.8 g
(0 oz)- Depth
15.1 cm
(5.9 in)
Description
BRAVO2 Oxygen Regulator, same as Model 832, except with international 0-4000 psi booted pressure gauge.
Strong uni-constructed body
CGA 870 pin index connection
0-3,000 psig Gauge
Fixed-orifice flow control with window-style flow reading
Flow specifications range from 0-25 lpm
Settings of ¼, 1/2,1, 2, 3, 4, 6, 8, 10, 15, and 25
Regulator provides a gas-regulated pressure of 57 psig at 2000 psi
Flow accuracy: Plus or minus 10% of reading at lpm setting > 1
C -ring clamp aids in retaining the tee-handle
Warranty varies
