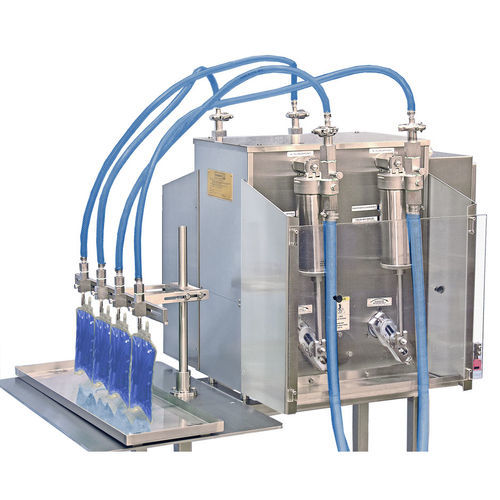

Semi-automatic filling machine DAB-32-4

volumetricbenchtopfor liquids

Ideal for applications that require dispensing two different liquids at different fill volume 316 SS product contact parts that deliver fill accuracy in the ± ½ % range. Explosion-proof model is available for use in hazardous locations. Requires 30-40cfm of clean, dry, compressed air. Fill Volumes from 10ml to 1100ml depending on the size of pump required. Includes a Heavy-duty, variable speed 1 HP drive that provides over 3000 in/lbs. of torque. Available drive packages from 12 RPM-24 RPM. The lower the RPM rate the more torque the machine delivers. 316 SS product contact parts that deliver fill accuracy in the ± ½ % range. Explosion-proof model is available for use in hazardous locations. Requires 30-40cfm of clean, dry, compressed air. 220V operation, compressed air may be required for some applications. Optional diving nozzle mechanism is avavble for liquids that foam or string. The FILAMATIC DAB-32-4 Heavy Duty Machine is a semi-automatic, liquid filling system that is ideal for free-flowing, semi-viscous, viscous and molten products as well as products with small particulates. The DAB-32-4 Heavy-Duty Series Benchtop filler offers a volumetric adjustment from 3ml to 1100ml and can be outfitted with multiple filling units to increase output and versatility. The DAB-32-4 Benchtop can fill a wide variety of liquid products, including viscous liquids such as essential oils, creams and lotions. It is also flexible enough to accommodate a wide range of containers such as plastic and glass bottles, pouches, as well as test tube type containers. Optional designs are available for OEM Applications,
