Semi-automatic filler AB

volumetricpistontable

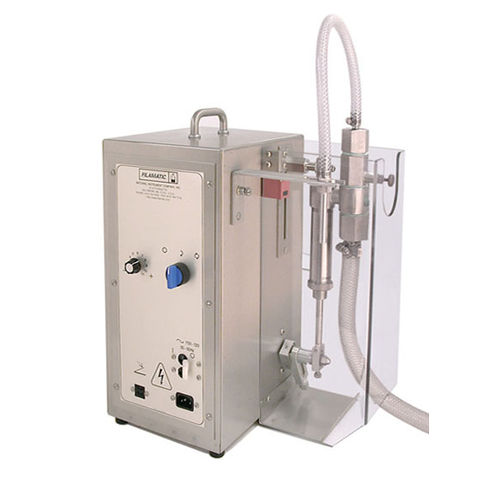

Capable of dispensing wide range of fill volumes (.05ml-260ml) Models available for use in hazardous environments Compact design, stainless steel construction. Simple to set-up, operate, clean and changeover 110V operation, compressed air not required for most applications. The FILAMATIC® AB Series Benchtop is a semi-automatic medium duty filler, ideal for repetitive dispensing of liquids from water-thin to viscous, molten products, and products with small particulates. The AB Series can accommodate fill volumes ranging from .05 to 260ml with the ability to mix and match pumps and nozzles for optimal versatility and flexibility. This single nozzle filling machine incorporates a variable speed electrical gearmotor drive, which turns the crankshaft that drives a volumetric piston pump known as a “Filling Unit”. The Filling Units are accessories offered to dispense a wide range of liquids and are made from either glass or stainless steel. The AB Series is offered in three models which operate at a maximum rate of 84 RPM, 35 RPM, and 23 RPM. The Models are the AB, AB-5, and AB-8. Designs are available for OEM Applications as well as CE Mark certified, and air operated models for hazardous environments.
