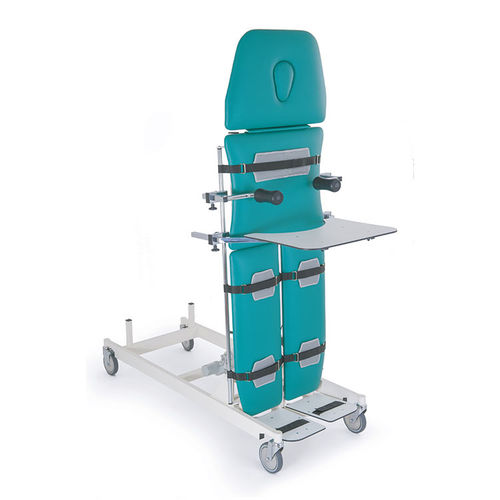

4-section tilt table URANO

therapyelectricon casters

Electrically adjustable tilt angle from 0° to 85° with hand control. It is equipped with three safety straps, an adjustable headrest, and independent footboards adjustable with a gas spring. Thanks to its structure, patient hoists can be placed under the couch. Details Length 200 cm Height 50 cm Width 65/70 cm Max working load 150 kg Under bed clearance 15 cm Technical specifications Fixed height - 50 cm Headrest adjustment - with gas spring + 30° - 80° Breathing hole and bung - As standard Tilt adjustment - electrical 0° - 90° 4 castors of which 2 locking - diameter 125 mm Safety straps - 5 Axillary supports - 2 Independent footboards adjustment - with gas spring +10° -23° Padding and upholstery fire-resistance rating - 1 I M Padding: density/thickness - 30 (kg/m3) / 40 mm
