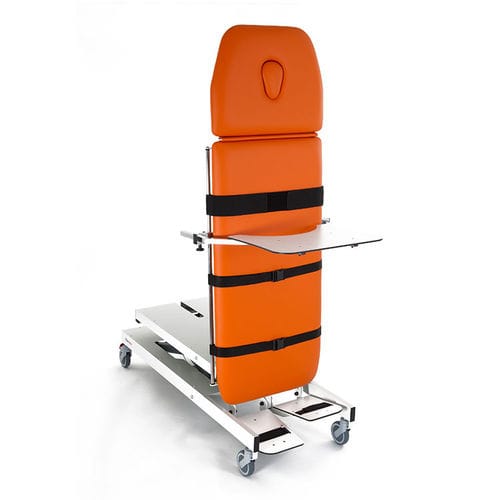

2-section tilt table EMERA

therapyelectricon casters

Height adjustable between 54 and 96 cm. Electrically adjustable tilt angle from 0° to 90° with hand control. It is equipped with three safety straps, an adjustable headrest, and manually-adjustable independent footboards. Thanks to its structure, patient hoists can be placed under the couch. Details Length 200 cm Height from 54 to 96 cm Width 65/70 cm Max working load 150 kg Under bed clearance 15 cm Technical specifications Height adjustment - electrical 54-96 cm Headrest adjustment - with gas spring + 60° - 20° Breathing hole and bung - As standard Tilt adjustment - electrical 0° - 90° 4 castors of which 2 locking - diameter 100 mm Safety straps - 3 Independent footboards adjustment - manual +20° -20° Padding and upholstery fire-resistance rating - 1 I M Padding: density/thickness - 30 (kg/m3) / 40 mm
