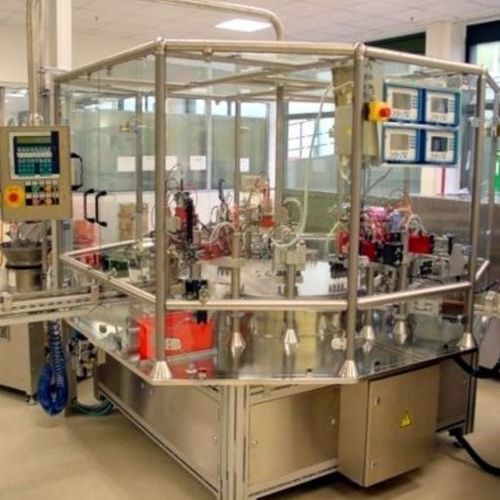

Packing workstation

The feeding of the individual components is carried out via the Standardpalettiersystem SPEED Line. The work transfer between the individual workstations or system components is performed by a link chain belt with workpiece carriers. The actual assembly of the individual components takes place on a rotary table. On the table there are 8 workstations, in which the individual installation steps are carried out successively. Each assembly station has a 6-fold workpiece holder. In the individual stations, the different items will be added. The final step is a screw syringe systems. This is torque and low surveillance. Subsequent arming the syringe systems is ensured by a force / displacement monitoring. The entire system is also validated according to GAMP.
