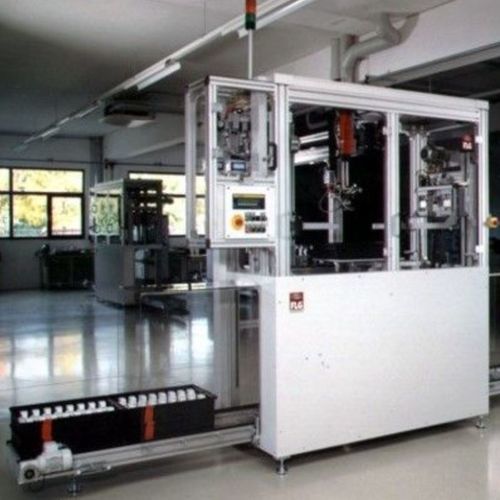

Handling palletizer SLIM-Line

compactautomatictray

Similar to the SPEED Line, the SLIM-Line palletizer range is also ideal for high volumes of individual items that require gentle handling. With its compact design and narrow width of approx. 800 mm, the SLIM Line can also be installed in assembly lines that offer very little space. Just as with its “big brother”, the trays can be loaded or unloaded using an integrated handling system. Trays and blisters are fed to the system over twin-belt conveyors or transport trolleys. Areas of application also include the field of medical technology, and the pharmaceutical, cosmetic, automotive, consumer goods, electrical or plastic industry, etc. Dimensions (L x W x H) - 800 x 1,000 x 2,200 mm Tray size - 200 x 300 to 400 x 600 mm Tray weight - Up to 35 kg Tray stacking height - Max. 800 mm Tray feed - Conveyor technology or transport trolley Drive - Motor-driven Clock time handling - Approx. 2.5 sec. (single picking) Control Menu - Siemens S7 (standard) Siemens IPC, Beckhoff IPC Tray loading/unloading from the front Tray loading from the front, tray unloading continuously at the back
