Dosing pump TH 500-1000
magnetic-driverotary vanefor liquids

Add to favorites

Compare this product

Characteristics

Applications

dosing

Operation

magnetic-drive

Technology

rotary vane

Fluid type

for liquids

Flow

Min.: 500 l/h
(132.08603 us gal/h)

Max.: 1,300 l/h
(343.42367 us gal/h)

Pressure

Min.: 0 bar
(0 psi)

Max.: 14 bar
(203.05 psi)

Description

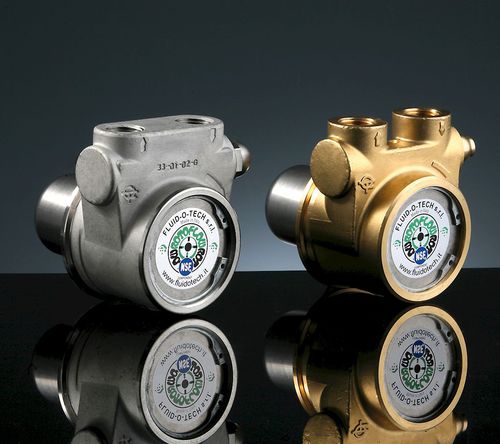

The TH 500-1000 series positive displacement rotary vane pumps are available with brass or stainless steel housings, with 1/2” GAS or NPT ports and internal relief valve. The nominal flow rates range between 500 and 1000 l/h at 1450 rpm. These pumps may be operated up to 1725 rpm and will provide flow proportional to speed, with a maximum of 320 GPH. Pump discharge pressure is up to a maximum of 14 bar (200 psi).The seal-less, magnetic coupling to motor provides extra reliability and longer service life. This series mounts directly to widely available M80 IEC or NEMA 56C frame motors by means of an adapter. FEATURES Self priming Quiet operation Seal-less magnetic coupling Pulsation free flow Long service life NSF and WRAS listed
