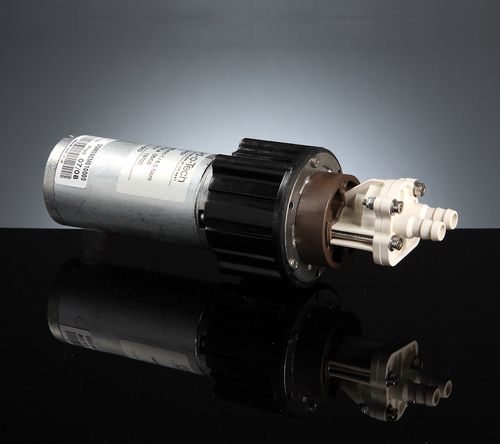

Magnetic-drive pump DGM

for liquids

The DGM series magnet drive gear pump-motor units derive from the DGD series. Built to handle clean and relatively viscous fluids at a max temperature of 95 °C (203 °F) with pressure up to 4 bar (58 psi). The pump housing is available in stainless steel or Vectra and the gears are in Vectra. Static seals are available in NBR, EPDM or VITON . The dynamic seal less design is guarantee of reliability. Suction/discharge ports are 8 mm barbed end. The pump drives are available in 12V or 24V brush DC options and in a range of different nominal speeds and powers for intermittent duty use. NSF certified pumps for potable water or fluids for human consumption are also available. FEATURES Compact dimensions 12V & 24V DC options Speed control by voltage Leak free static seal design NSF listed
