Fixed panel 102.01

sliding

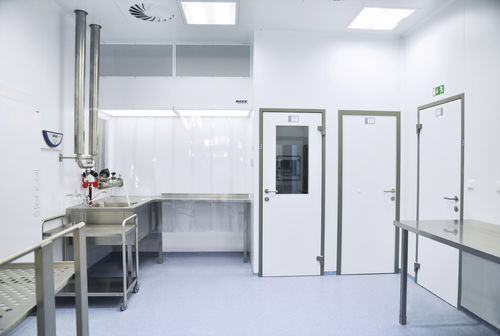

Basic partition panels represent one of the basic elements to construct clean workplaces and areas with maximum safety, sterility, hygiene, easy maintenance and sanitation. Their design is suitable especially for hospital environments, areas in pharmaceutical industry, electrotechnical industry, mechanical engineering industry, food industry, and chemical industry. Due to the tight connection between the partition panels, spaces created between the panels, the floor and the ceiling are guaranteed to contain overpressure or underpressure in the room, which means that they meet the basic criteria for clean areas, for which these panels were specifically designed and proven. Sandwich-type panels, consisting of a shell and an inner filling. Panels connected by mutual sliding; self-supporting. Possibility to make custom panels. Panels solid or glazed. Possibility of gluing horizontal and vertical reinforcements for anchoring shelves, technology, door frames, etc. Installation posts inserted for media distribution. For el. leads prepared wiring bushings in the panel filling. Possibility of fitting the HVAC panel with grilles. They meet the parameters for an explosive atmosphere PANEL MOUNTING The panels are fixed to the floor by means of guide profiles (Basic profile / U profile) by sliding. Above the ceiling, the panels are connected by an upper U-profile, which is anchored to the building ceiling or to the auxiliary structure
