Sandwich panel 102.06

steel

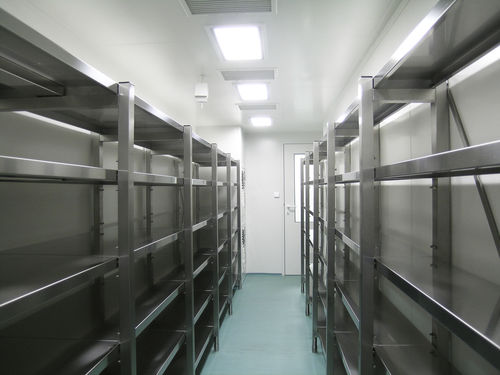

Panels with increased thermal resistance are used for the construction of thermochambers and cold storage boxes. Sandwich-type panels, consisting of a shell and an inner filling. Panels connected by mutual sliding; self-supporting. It differs from the basic partition panels by the filling and anchoring to the side partition panels, the floor and the ceiling. Media distribution, electrical distribution and HVAC distribution are conducted on the surface, or from the outside of the clean room In areas constructed with these panels, temperature and pressure according to the customer's requirements are maintained. The whole system of connecting panels to each other and to other components (i.e. door casings, ceiling panels, anchoring to the floor) is designed in such a way as to eliminate thermal bridges and minimise heat transfer. This panel system also contains other elements for the construction of complete boxes: Panel thickness T 102 mm 122 mm 62 mm 82 mm Panel width S 1190 mm 560 mm S - width in mm according to dimensional range 560 mm, 1190 mm.Preferred dimensions: 1190 mm, 560 mm. It is possible to order atypical panel dimensions: min. dimension 300 mm, max. dimension 1190 mm. Panel height H 2400 mm 2600 mm Panel height 2400 and 2600 mm. Min. dimension 300 mm, max. dimension 4000 mm. Filler Styrofoam IB Facing hue and material - standard on the visible side Galvanized metal sheet, hue RAL 9002 Galvanized metal sheet, hue RAL 9016 Stainless steel AISI 304 Powder coating (Komaxit), hue RAL
