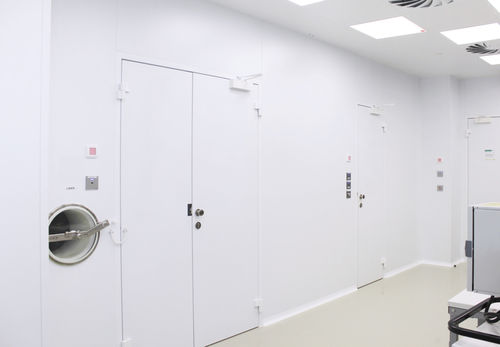

Operating room door 104.06

swingstainless steel

Together with the casing, partition panels and ceiling panels with increased thermal resistance, this door with increased thermal resistance is another component for the construction of cold storage rooms and thermochambers. The door is of the sandwich type, consisting of facing and inner filler Styrofoam IB. They are always made as rebated doors, thickness 62, 82, 102 or 122 mm. Door thickness depends on the thickness of the used panel (the door is always aligned with the partition). Doors and casings have minimum heat transfers and no thermal bridges. Swing direction left right Finish single wing Door dimensions 1100 mm 700 mm 900 mm W; H; clear width x clear height Door thickness 102 mm 122 mm 62 mm 82 mm Hinge type Atypical Dr. Hahn Standard hue RAL 9016 matt - standard casing. In the case of a different hue of the casing, the hinge is automatically of the same hue as the casing. Glazing usual thermo glazing 400x920 solid without glazing atypical BT - Glazing with thermal resistance λ=1 W.m-1.K-1 is used as standard.With atypical design, it is also possible to modify the glazing parameters according to customer's requirements - always subject to consultation with FC staff.
