Sandwich panel 102.07

steel

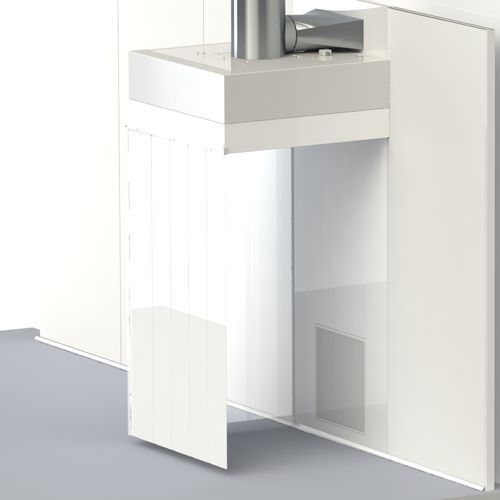

The HVAC duct is a part of the partition system for clean rooms. It is designed to exhaust air from the working area without installation of other HVAC components, thus reducing the space needed around the ventilated area. A sandwich panel with an installed HVAC duct which is part of the structure Optional integration into the BLOCK partition system It is deigned for airflow from 400m3/h to 1200m3/h The panel has the same dimension as the standard panel and it is aligned in the partition Space saving Partition integrity without additional HVAC components Panel thickness 60 mm atypical Panel width S 1190 mm 600 mm S - width in mm according to dimensional range 600 mm, 1190 mm. Panel height H height - value 2740 mm - H=H1+190mm, 2550mm+190mm 2940 mm - H=H1+190mm, 2750mm+190mm 3240 mm - H=H1+190mm, 3050mm+190mm Height according to standard dimensional range 2550, 2750, 3050 mm, Preferred dimensions 2550, 2750, 3050 mm.* Mximum panel height 4000 mm. * - The specified panel heights are for use with a light metal ceiling, for other ceilings the panel heights are determined individually Perforated sheet dimension 300x600mm 600x600mm The perforated sheet is included in the delivery of the HVAC duct. Facing hue and material - normally on the visible side Galvanized metal sheet, hue RAL 9002 Galvanized metal sheet, hue RAL 9016 Stainless steel AISI 304 Aluminium sheet, hue RAL Galvanized metal sheet, hue RAL It is necessary to observe the panel orientation according to the side end S5.
