Acoustic panel 102.12

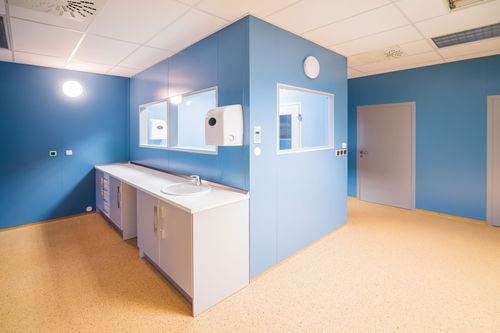

The double partition has been developed mainly for the partition in auxiliary rooms of the surgical wing (patient prep room, recovery rooms, physician washing room, sterilisation room, etc.) in the system of operating theatre build-outs. The basic thickness of the double-sided partition is 100 mm. For larger diameters in the partition, the thickness is 145 mm The double partition is encased in cladding panels with plasterboard fillers. Panels are installed on vertical grid C-profiles, using a suspension ridge. The cladding can be double or single sided (wall cladding). 1) Basic profile, 2) Grid prop, 3) Grid crossbar, 4) Top profile, 5) Panel with suspension ridge and plasterboard reinforcement, 6) Suspended ceiling guide rail, 7) Supporting profile. 8) Flooring PANEL FITTING The double-partition panels settle on the supporting grid. colour stability corrosion protection thermal and acoustic insulation Pharmacy, biotechnology, medical devices Microelectronics, optics, automotive, electrical engineering Healthcare Engineering, food and chemical industry, etc.
