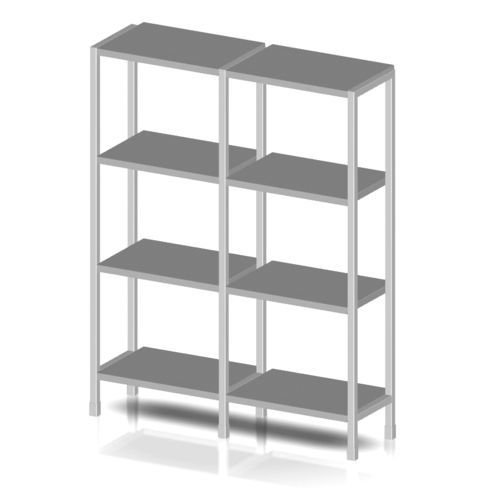

Storage rack 215.06

stainless steelshelf

Stainless steel racks consist of two legs and screw-on shelves. The legs are made of profile 40x2 and feature standard adjustable feet allowing to adjust the rack height (about 30 mm). The shelves are height adjustable by ± 100 mm, are made of P1.5 metal sheet and may be solid or perforated. The maximum permissible load applied onto the shelves is 50 kg/shelf; the rack has a maximum permissible load-bearing capacity of 250 kg. When setting up two or more racks, the central legs are shared by two racks. Type of rack design Implementation in GMP standard Rack for temperature resistant-chamber GMP Type of rack Basic rack. The shelf width corresponds to the shelf width plus 60 mm. Additional rack. The shelf width corresponds to the shelf width plus 30 mm. Frame hue and material Stainless steel AISI 304 Other material frame design Shelf hue and material Stainless steel AISI 304 Stainless steel AISI 316 Other material shelf design Shelf width A´ width - value 640 mm - Shelf width 740 mm - Shelf width 840 mm - Shelf width 940 mm - Shelf width Depth B depth - value 400 mm - Rack depth 500 mm - Rack depth 600 mm - Rack depth The TRK rack, which is anchored to the partition, is supplemented with a distance. The shelf depth is increased by 50 mm. The shelf depth of the shelf remains the same. Height C height - value 1800 mm - Rack height 2000 mm - Rack height Type of shelf Smooth shelf Perforated Shelf - Oval Holes * Shelf load capacity Shelf load capacity 50 kg Shelf load capacity 90 kg
