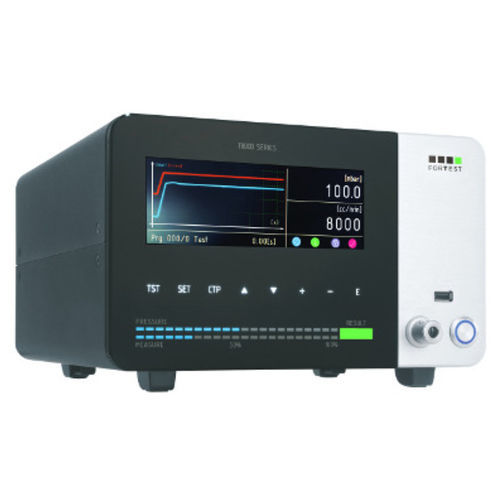

Pressure tester T8730

loadflowfor medical devices

T8730 was designed for the precise task of measuring flows on parts such as filters (medicinal, diesel or petrol), tubes, nozzles, openings and valves. Other than the classic flow measurement, the instrument also has other ways of making it as versatile as possible in its category: ascent and descent ramps, opening tests and burst testing. Another separate function is the "continuous measurement", i.e. a test with infinite times allowing adjustment of the taps and part repairs in real time. The tool also avails of an intelligent pressure adjustment, which uses the automatic pressure regulator to continuously adjust the test pressure based on the variation in load loss, to ensure the reading is as stable and repetitive as possible. The new T8730 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc... The front panel has a master USB port for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware. The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.
