Specification:
Power voltage:220V 110V/ 50Hz, 60HZ
Motor voltage:24V
Water pressure:0.2MPa-0.4MPa
Air pressure:0.5MPa-0.8MPa
STANDARD CONFIGURATION:
●24V DC motor for chair : 1 set
●Auto spittoon flushing & cup filler control system: 1 set
●Inter-lock control system: 1 set
●Down-mounted instrument tray with air brake: 1 set
●Rotatable caremic spittoon: 1 set
●3-way syringe (hot/cold): 2 sets
●Muti-function foot controller: 1 set
●High suction & saliva ejector system: 1 set
●Seamless cushion (PU): 1 set
●Outer water tank: 1 set
●Build-in floor box : 1 set
●LED sensor operating light: 1 set
●LED film viewer: 1 set
●doctor stool: 1 set
Technical parameters

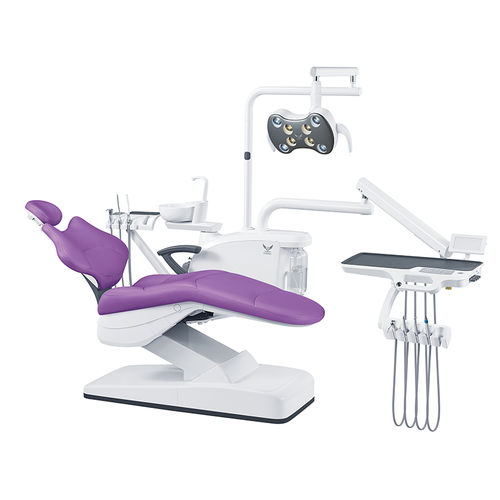

1, GD-300 dental unit (with compesation position chair)
1.1, the minimum chair is less than 430mm, and the maximum chair position is less than 720mm;
Chair load 135kg (without treatment machine);
Chair lifting speed is more than 15mms, and is very stable;
Cushion inclined angle is less than or equal to 10 degree;
Back 0 degrees to 70 degrees.
1.2, the headrest can be adjusted, head extension length of less than 120mm, head tilt angle of 20 degrees, tilt angle of 40 degrees
1.3, noise less than 45 decibels, the motor rotates with mute DC motor, ensure the safe use of the hospital.
1.4, the machine has a hand control and foot control four directions chair mode of operation, with the microcomputer control system, a reset and PLC (programmable controller: according to user requirements and to control the circuit with programming logic function).
