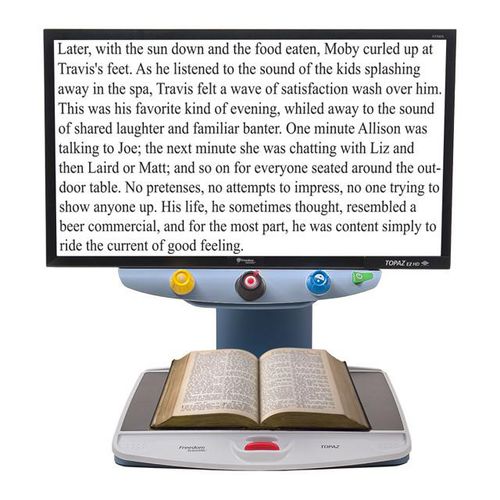

Medical video camera TOPAZ®EZ HDdigitalHDLED
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- digital
- Resolution level
- HD
- Light source
- LED
- Other characteristics
- with zoom
- Weight
19 kg, 20 kg
(42 lb, 44 lb)
Description
Custom high-contrast color modes
► Color-boost contrast
► Brightly-colored control buttons
► Large workspace
► Comfortable, swivel screen
► LED lighting reduces glare
► One-touch button to freeze images
SPECIFICATIONS
Magnification Weight
20” 3.5x - 64x 41 lbs / 18.6 kgs
24” 4.2x - 77x 43.7 lbs / 19.8 kgs
20” 2.5x - 60x 41 lbs / 18.6 kgs
24” 3.0x - 72x 43.7 lbs / 19.8 kgs
Dimensions
25 in x 17.2 in x 17.3 in / 63.5 cm x 43.7 cm x 43.9 cm
Working Height Under Camera
8.25 in / 21 cm
XY Table Dimensions
17 in x 16 in x 1.84 in / 437 cm x 40.6 cm x 4.7 cm
X dimension travel - 16 in / 40.6 cm
Y dimension travel - 10.5 in / 26.6 cm
