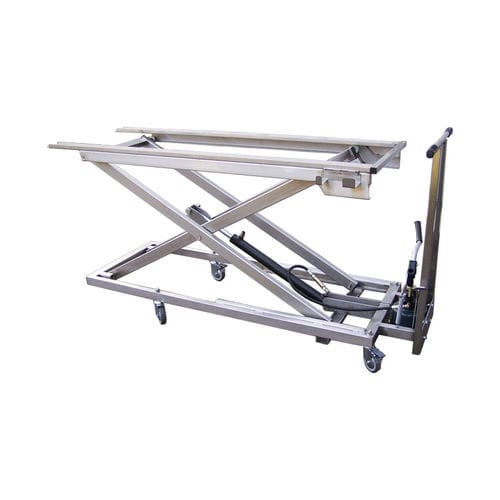

Lifting funerary trolley CHAR013

stainless steelhydraulicmobile

They also allow body care thanks to its tilting rails, thus avoiding the investment in an autopsy or preparation table. The 2 rails include an end stop but also a stretcher blocking system. For better guiding of the stretcher, the rails are designed with inclined edges. A powerful hydraulic cylinder can be used to climb up to 1.42 m (single cross slide) or 2.00 m (double cross slide). A hydraulic pump allows the ascent and the foot control for the descent (safety for a smooth descent). The maximum admissible load is 220 Kg. For handling, the equipment is equipped with 4 swivel wheels 100 mm diameter, 2 of which are equipped with brakes for locking the wheels during ascent or descent. The dimensions - Length: 2000 mm - Width: 630 mm - Height: 270 to 1420 mm (single) and 330 to 2000 mm (double) Weight: 70 Kg (single) / 90 Kg (double) This equipment is specially designed to adapt to all of our products: stretchers, refrigerated cell, ... However, we have the possibility of manufacturing tailor-made trolleys adapted to your existing equipment.
