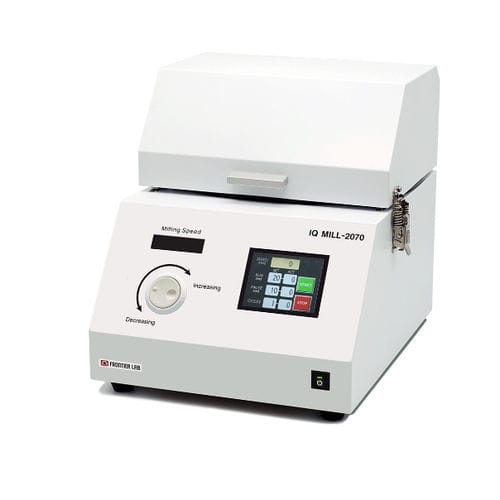

Ball bearing mill IQ MILL-2070

laboratorysamplecryogenic

A compact benchtop grinding mill with powerful and shear crushing capabilities IQ MILL-2070 makes the sample grinding process into a simple pre-treatment operation. By using a special high elastic belt with excellent durability, efficient crushing is achieved in a short time by high-speed three-dimensional figure-8 motion. This is the ideal sample treatment device for instrumental analysis, especially in crushing, stirring, and dispersing polymer materials (patented in Japan). ＊Examples of grinding applications using IQ MILL-2070 can be viewed. Please click on "Griding applications" at the bottom of this page. Features 1. Easy to use and simple to operate Grinding samples by simple operation 2. Fast and efficient grinding Milling up to three samples at a time in the same program Powerful impact and shear crushing capabilities bring significant reduction in grinding time 3. Liquid nitrogen cooling kit for cryo-milling A compact design in which only the sample container can be precooled with liquid nitrogen before grinding. Grinding at room temperature for most of materials. Specifications Operating temperatures Room temperature or below using a refrigerant (liquid nitrogen, etc.) Setting parameters Rotation speed (rpm) : 50 up to 3000 (stepless) Rotation time (sec) : 1 up to 60 (10 second step) Pause time between cycles (sec) : 10 up to 600 (10 second step) Rotation cycle : 1 up to 10 (1 cycle step) Safety function Combination of double micro switch and manual lock Main unit dimensions and weight 270(W)ｘ340(D)ｘ300(H) mm, Approx. 12kg Power (50/60 Hz) 100/120 VAC or 200/240 VAC (450 VA)
