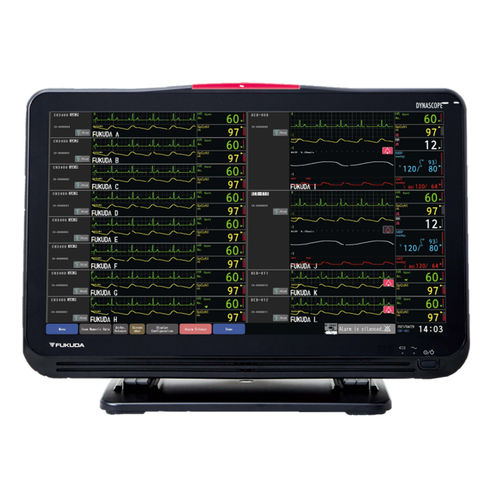

Central Monitoring Station, “DS-1700”. A 21.5 inch capacitive touchscreen LCD to view up to 32 patients at once, including eight internal wireless telemetry receivers. Smaller, thinner, lighter, and equipped with the latest in Fukuda’s software and technology, even a built-in 1-hour backup battery. The optional extended storage allows for 336 hours (14 days) of full disclosure waveforms and SpO2 drop detection. The inclusion of patient scoring (EWS, NEWS, NEWS2, and qSOFA) are calculated and displayed automatically.
FEATURES
Optional 8 wireless telemetry receivers.
Up to 10 parameters per 8 patients can be seen on 1 screen, including both the nurse call and alarms settings.
Internally preinstalled backup battery (Approx. 60 minutes) included.
Patient scoring (EWS, NEWS, NEWS2, and qSOFA) comes standard and are calculated and displayed automatically.
Up to 336 hours of full disclosure waveform recording.
Includes QT/QTc and extended ST segment monitoring capability.
SPECS
Dimensions
535 (W) mm x 390 (H) mm x 170 (D) mm ±10 mm (not including the protrusion)
Weight
9 kg ±3 kg (not including the optional accessories)
