Vascular examination software VSS-50

medicaldata managementacquisition

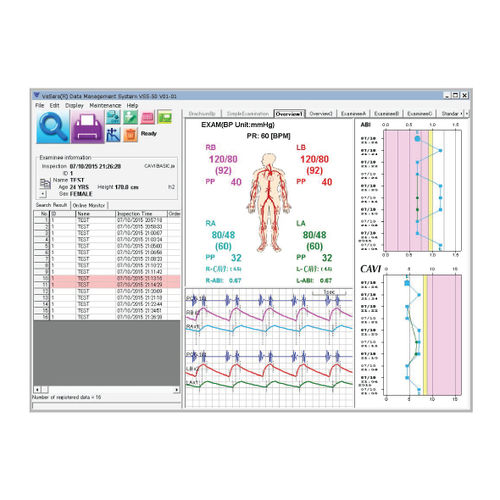

The VSS-50 data management software acquires, displays, prints, corrects, and manages the inspection data measured on the VaSera Series Sphygmomanometer and Sphygmograph. FEATURES Data management can be performed for numeric data as well as waveform data (inspection data). Inspection results can be output in JPEG / PDF graphic file format. The VSS-50 system can be operated on up to 10 PCs. The data managed by one PC (Server) can be displayed on, or printed from other computers (Client). Examination data can be entered from the result output file of examination devices other than VaSera series. Inspection data that is stored on the IC card can be registered off-line. All VSS-50 data can be printed out or exported as a CSV file. Examinee information can be acquired from the host computer and used on the VaSera series Sphygmomanometer and Sphygmograph. HARDWARE REQUIREMENT OS Windows7 (Home Premium / Professional / Ultimate) 32 / 64bit Windows 8.1 32 / 64bit Windows 8.1 pro 32 / 64bit HDD (Disk Space) Application 180MB, Data 10GB (100 thousand data) LAN Required for on-line registration of inspection data. CPU Comply with the recommended system requirements of OS. CD-ROM Drive Required for Installing the VSS-50, VSS-3. Memory Comply with the recommended system requirements of OS. PCMCIA or USB connection Required for using the CF card reader / writer. Resolution 1024 x 768 resolution or higher High Color (16bit) or higher USB port Required to use the Software Protector (CodeMeter).
