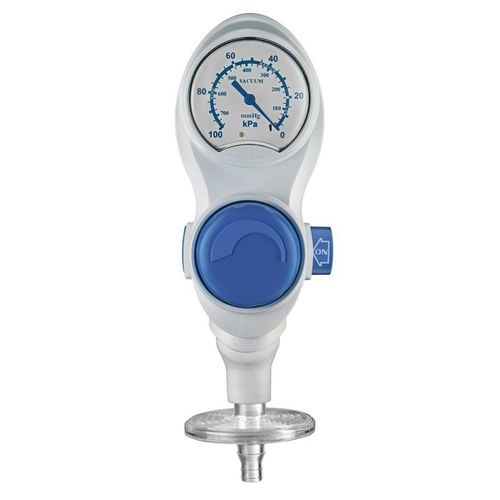

gh vacuum regulator with a precision-control mechanism to ensure a high-stability and accuracy. Comes with an ON/OFF switch for quick opening and closing. Water trap made of polycarbonate (SafetyTrap PC) with overflow safety system and high efficency particle filter. Materials: body in ABS + PC, vacuum gauge cover in PC, O-rings in NBR and silicone, pneumatic mechanism in POM and TPE, inlet thread female WGAS ¼” in chromed-plated brass. Options: - Hydrophobic antibacterial and antiviral filter (Bacterial Filter) O.D. 15 mm / 9 mm. - Diss connector. High flow suction regulator. High stability and accuracy.
Technical data:
Materials: body in ABS-PC, vacuum gauge cover in PC, O-rings in NBR and silicone, pneumatic mechanism in POM, inlet thread connection in chromed plated brass.
Fast ON/OFF switch.
Water trap (made in polycarbonate with safety valve and particles filter) or hydrophobic bacterial and virus filter.
Range: 0-100 kPa – 0-750 mmHg
Precision: + 5%
Flow: 90 L/min
Dimensions: 240 x 86 x 86 mm
Weight : 310 gr
Options:
HV: basic unit with fitting, water trap, security valve and particle filter.
HV PC1 Diss: with Diss adapter, particle filter and suction jar PC1 Diss directly fitted to the vacuum regulator
HV PC2 : with 1,7 L suction jar and wall support.
HV PC4: with 4 L suction jar and wall support.
HVR: with rail coupling system
HVR PC1 Diss: with rail coupling system and 2 L suction jar.
HVR PC2 Diss: with rail coupling system and 1,7 L suction jar.
Mobile on castor base
