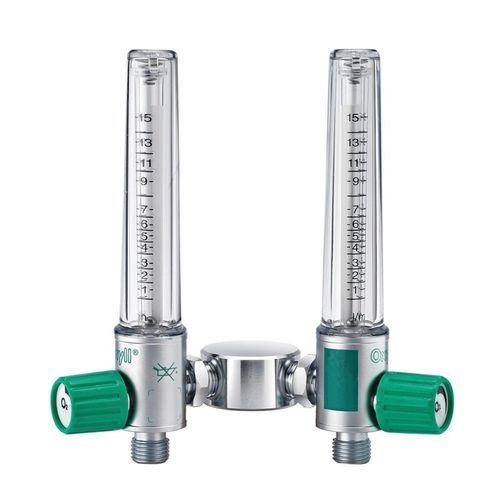

Oxygen flowmeter GSHEOX2

Chromium–plated brass body, inner and outer tube in polycarbonate, stainless steel float, other parts in brass, polyamide and NBR. This equipment compensates the variations of pressure of the pipeline since it admits all the pressure of the line, maintains the pressure and it provides to the patient the selected flow under atmospheric pressure, through the mask, nasal catheter, humidifier, etc. Technical data: Gases: Oxygen, Air Dimensions: 145 / 145 mm Inlet: Whitworth GAS 1/8” Outlet: DISS O2 9/16” - 18 UNF L/min: 0 - 15 Accuracy: ±10% Fittings: BS, NF, DIN and SS. Other fittings available on request
