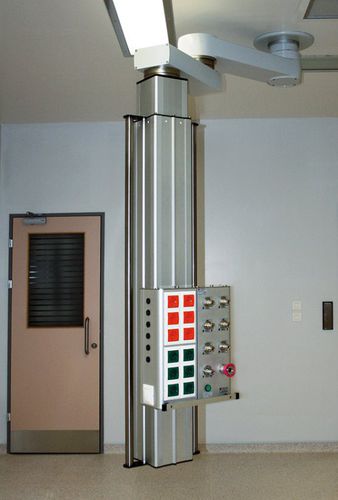

Medical pendant THESSALONIKI)

ceiling-mounted

THESSALONIKI pendant arm has been created for grouping all the necessary electrical, data and medical gases services, required for use in operating theaters. The installation position ensures that the outlets can be placed immediately above the anesthetic machine, there by removing the hazard of trailing hoses and cables. The unit is manufactured totally of special extruded anodized aluminum profiles and consists of the below main parts: Ceiling plate support system Double horizontal aluminum arm Vertical retractable (telescopic) body including technical box and two stainless steel tubes Ø38mm for the suspension of various appliances Technical characteristics: Horizontal rotation in three axis max (340º+340º+340º). The rotation on first bearing can be manually adjusted every 30º on 12 positions. Double horizontal arm (900+700mm) adjustable dimensions Vertical arm of 1600mm Optional: Stainless steel or alluminum monitor table (450x350mm) adjustable dimensions Electrically operated linear actuator Pendant weight: 195kg Pneumatic and mechanic brakes (Optional 2nd pneumatic brake) Load capability: 250kg Electrical motor technical specifications: - Push/ pull force: 5.000N - Stroke length: 500mm - Voltage (50 Hz): 230V~ - Power consumption: 175W - Speed at nominal load: 6mm/sec. Technical box specifications: 8 electrical sockets 10/16A - 250V~ color: red (UPS) or green (Generator) 1 ground bar for electrical sockets 1 automatic switch 10A for the electric motor protection 1 double button for the up-down movement of pendant’s head 1 simple button or handle button for pneumatic brake/ optional 2nd button 3 equipotential sockets DIN 42801/2
