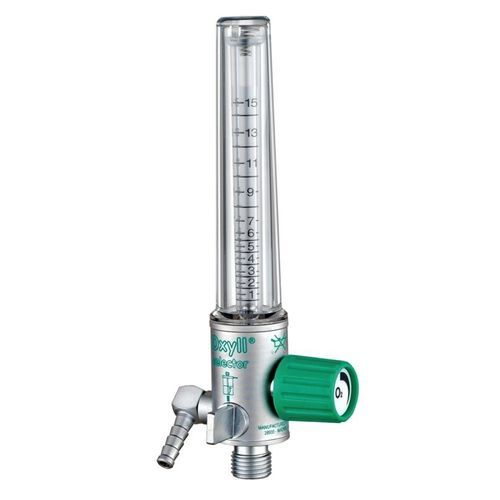

Oxygen flow meter GSHEOXSEL1

Chromium–plated brass body, inner and outer tube in polycarbonate, stainless steel float, other parts in brass, polyamide and NBR. This equipment compensates the variations of pressure of the pipeline since it admits all the pressure of the line, maintains the pressure and it provides to the patient the selected flow under atmospheric pressure, through the mask, nasal catheter, humidifier, etc. The flowmeter selector has been designed to save time and O2. It performs a revolving control knob that allows to supply O2 through the direct outlet to the face mask, nebulizer or through the humidifier. There is no interruption of O2 supply during this operation. Technical data: Gases: Oxygen, Air Dimensions: 155 / 63 mm Inlet: Whitworth GAS 1/8” Outlet: DISS O2 9/16” - 18 UNF Accuracy: ±10% Fittings: BS, NF, DIN and SS. Other fittings available on request
