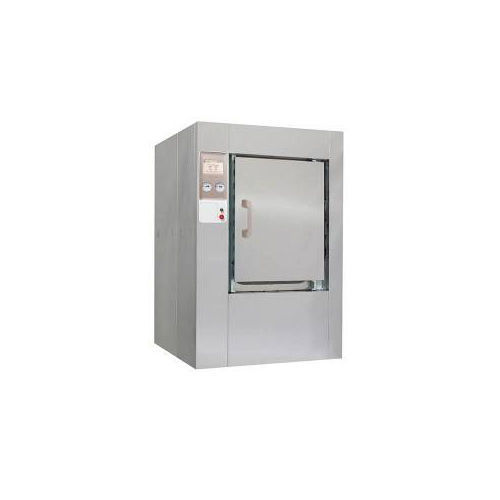

Medical sterilizer G-A1-1-SD series
for the pharmaceutical industryindustrialsteam

medical sterilizer
medical sterilizer
Add to favorites
Compare this product


Characteristics

Applications
medical, for the pharmaceutical industry, industrial
Sterilization procedure
steam
Configuration
floor-standing
Sterilization chamber material
stainless steel
Capacity

Max.: 2,000 l
(528.34 gal)

Min.: 140 l
(36.98 gal)

Carrying capacity

Max.: 2,550 kg
(5,621.8 lb)

Min.: 610 kg
(1,344.8 lb)

Width

Max.: 1,450 mm
(57 in)

Min.: 1,290 mm
(51 in)

Height

Max.: 2,400 mm
(94.5 in)

Min.: 1,600 mm
(63 in)

Depth

Max.: 2,830 mm
(111 in)

Min.: 740 mm
(29 in)

Description

GTI G-A1-1-SD series Pulse Vacuum Sterilizer is a fast, compact and versatile sterilizer designed and manufactured to combine high capacity and cost-effectiveness, while offering high operational reliability and ease of maintenance. The design of Pulse Vacuum Sterilizer chamber accords with CE, European EN285 standard, ASME and PED. Pulse Vacuum Sterilizer Features: ◆ Nice chamber surface of Pulse Vacuum Sterilizer Surface Smoothness, Ra≤0.5; No welding part or bolt in the chamber which effectively protects the items to be sterilized. Steam baffle plates are surrounded by silicon rubber protecting the chamber surface. ◆ Reliable and durable chamber of Pulse Vacuum Sterilizer Chamber is designed according to professional analytical method. High-emulation software ANSYS is used for chamber simulation. Design service life: 10 years (or 20000 times sterilization) ◆ Precise pressure detecting and control of Pulse Vacuum Sterilizer Intelligent pressure transmitters, Wika (Germany), ensure steam pressure detecting and control both in Chamber and jacket. ◆ Unique vacuum noise-reduction system of Pulse Vacuum Sterilizer LNS low-noise and water-saving vacuum system, effective reduced the noise during running ◆ Humanized operation system of Pulse Vacuum Sterilizer Colorful touch screen on loading-side, 6 indicating lamps on unloading sides which are concise, vivid and exactly showing sterilization running status and alarming information.
