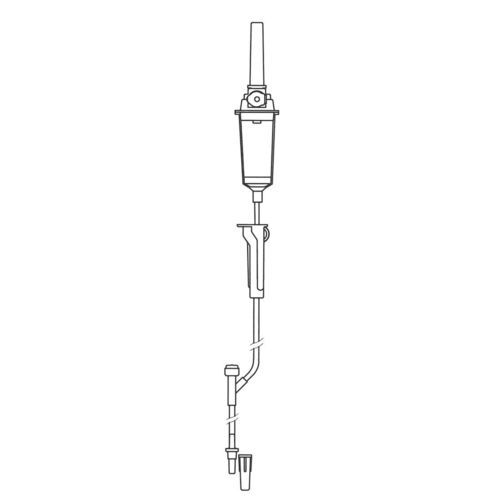

Product No.:V606102-NDName (abbreviation):Infusion set IS-102Version:Sterile-EOGroup packaging:-Delivery packaging:200 piecesprintprint
INTENDED USE:
Disposable medical device intended for therapeutic administration of infusion solutions from bottles or bags by gravity.
the infusion set meets the requirements of the ČSN EN ISO 8536-4 standard
DEHP-free
piercing spike protected by a cover
transparent drip chamber for observing of falling a drops
drip tube for even droplet formation (20 drops = 1 ± 0.1 ml)
air supply device equipped with an air-hydrophobic filter against the intrusion of microorganisms (filter porosity 3.0 μm)
PVC hose made of flexible material, transparent so that the passage of air bubbles can be observed
hose size 3.0 / 4.2 mm, length 160 cm
infusion filter 15 μm
flow regulator for flow adjustment in the range from zero to maximum, it´s equipped with a hose holder
injection part for immediate repeatable injection of medicines with a needle
connection end without Male Luer thread
