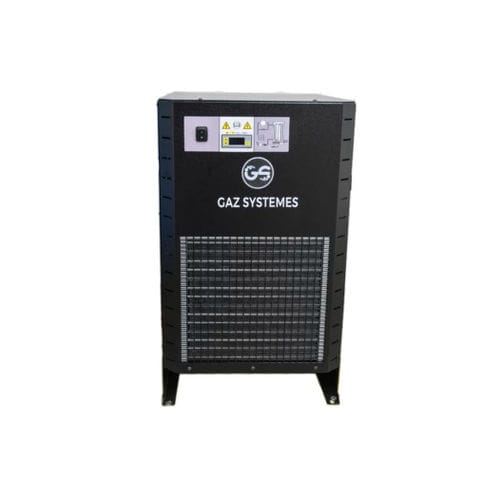

Refrigerated air dryer GS-DRY series

for gas generators

The refrigeration dryer is one of the major components of an oxygen production plant. It makes it possible to condense a large part of the water contained in the ambient air by lowering the temperature of the compressed air, so as to obtain a dew point of 3 ° C under pressure. The generator also contributes to reducing the pressure dew point, because the molecular sieve is being capable of absorbing part of the remaining water. Thus, after passing through the refrigeration dryer and the generator sieve, the oxygen produced has a water content in accordance with the European Pharmacopoeia: <67 ppm. Technical characteristics Air inlet temperature: 55°C max. Operating temparture: 45°C max. Power supply: 220V AC 50Hz Operating pressure: up to 14 bar Accessibility: all covers are removable for easy maintenance Heat exchanger: Compact & Ultra performant Refrigerant R134a Inlet/Outlet G3/8 aDN180 3° C Pressure Dew Point
