Medical gas manifold MC25

supplychange-over

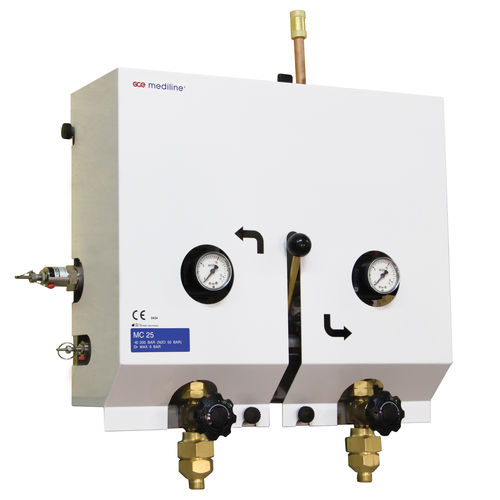

The gas cylinder manifold MC25 has a capacity of 25 m3/h and is primarily intended for small and medium-sized hospitals. The gas cylinder pressure is regulated in two steps. The change-over between operating side and reserve side is made automatically without any differences in the operating pressure. The alarm signal comes from the pressure switches to the alarm unit. The alarm signals from the alarm unit can be forwarded directly to a monitoring desk. Function control and service can be carried out without interruption in the gas supply. SPECIFICATION MC25 INCLUDES THE FOLLOWING COMPONENTS: Gas manifold MC25 Gas alarm including power supply Evacuating kits for collecting pipe Shut-off valve for distribution line HP filters Collecting pipe for 2×1 cylinder FOR A COMPLETE MC25 MANIFOLD ADD: High pressure collecting pipe set (high pressure valves, filters and non-return valves) High pressure hoses with safety wire Cylinder retaining brackets (included in gas cylinder collecting pipe set) Gas name sign TECHNICAL DATA Gases:O2, Air, N2, N2O, CO2, (all medical gases) Nominal flow:25 m3/h Inlet nominal pressure:200 bar (20 000 kPa) Outlet nominal pressure:4,5 bar (setting range 0,5–6 bar) Inlet connection:W21,8×1/14"M Outlet connection:G1/2"M + soldering piece pipe ∅ 10, ∅ 15 mm Outlet pressure relieve valve:6,8 bar Intermediate pressure relieve valve:17 bar Pressure relieve valve pipe dimension: - ∅ 15 mm Regulatory status: Complies with Medical Devices Directive 93/42/EEC Complies with EN ISO 7396-1 (Central Gas Supply systems) Complies with EN 60601-1-2 (Electromagnetic compatibility) present SIS HB 370 and HTM 02-01
