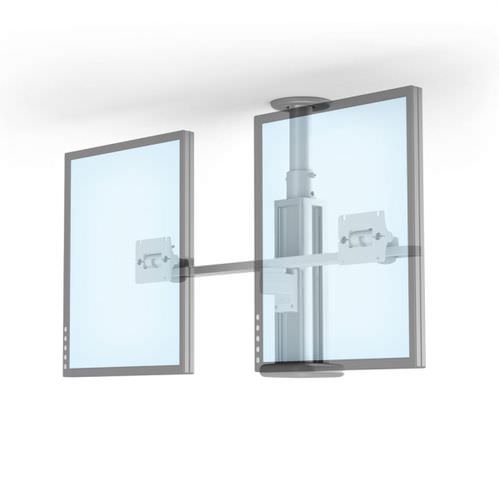

Positioning support arm CM-0010-0 series

for monitorsmedicalceiling-mounted

Dual channel columns allow standard GCX wall mounting solutions to be used for ceiling mount applications Features two channel profiles to mount arms and accessories plus two side raceways with covers for cable management Port hole at the top allows cables to be rundown the anchorage pipe and inside the column Pass-through access port in the channel profile area allows cable access from inside the column and to both sides Mounts to 1.5"/3.8 cm NPT pipe (not included) Channel profiles can easily be positioned for left/right or front/back orientation to accommodate different arm combinations and application requirements Not for use with any GCX VHM P/PL Variable Height Arm with an Extension 100 lbs./45.4 kg maximum load at channel profile (flush to column) 50 lbs/22.7 kg maximum load 24"/61 cm from the channel profile* 360 degree swivel adjustment for optimal positioning NOTE: Assumes adequate anchorage of column. Adequate anchorage is the responsibility of the purchaser. 12"/30.5 cm Column M Series Swivel-Only Arms M Series Flush Mount with Swivel-Only Front End Max. load: 60 lb /​27.3 kg
