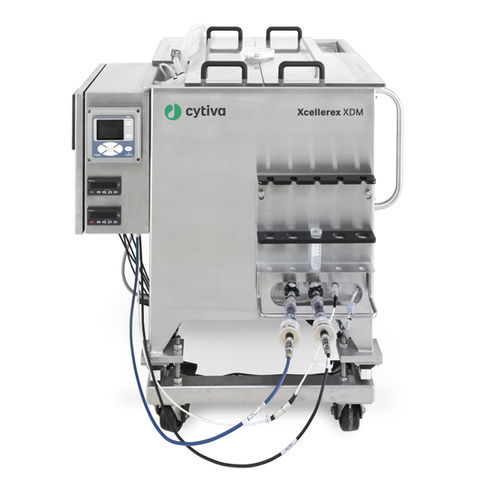

Digital laboratory mixer Xcellerex™ XDM

for bioprocesscompactmobile

The Xcellerex™ XDM Mixing System delivers robustness and flexibility for a wide variety of mixing applications. Volume range is from 50 L to 1000 L in stainless configurations and 50 L to 500 L in polypropylene configurations. The XDM Mixing System delivers robustness and flexibility for a wide variety of mixing applications. Volume range is from 50 L to 1000 L in stainless configurations and 50 L to 500 L in polypropylene configurations. Powerful, integrated magnetic agitator with compact VFD and AC motor Square configuration increases mixing efficiency through natural baffling effect Fitted square bag minimizes bag wrinkles Workable heights and low center of gravity increase level of safety Bottom tank panel sloped on two planes for extremely low bag hold-up volume Real-time sensing and sampling capability via mixer window and bag probe ports, sampling port and thermowell for noninvasive temperature sensing Robustness The XDM Mixing System is an integrated rigid container, complete with an agitation system and controls that uses an irradiated USP Class VI single-use ULDPE fluid contact layer bag. A disposable impeller is welded into the bottom of the bag assembly that mounts to the motor drive assembly via direct magnetic coupling. The robust magnetic engagement between motor and disposable impeller imparts high torque and rapid mixing capability to the system. Flexibility The system delivers flexibility with the availability of two standard bag types that include varying numbers of tubing lines and connections, and sampling and sensing capabilities to accommodate a wide array of applications.
