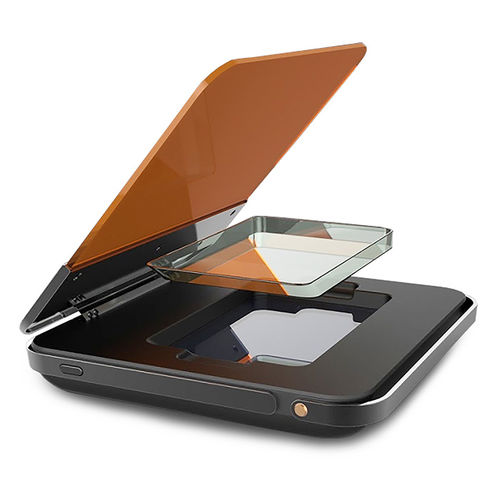

Gel electrophoresis transilluminator μBLooK™

for gel documentation systemslaboratoryfor DNA

Optimize for use with the DNA fluorescent dyes. The blue light source is good for 30,000 hours. Higher sensitivity and rotating bracket can help easy to observation. Plastic tray design can keep the experimental environment clean. Description μBLooK™ is a remarkable blue light LED transilluminator for the detection of under non-UV excitation conditions. Since blue light, wavelength 470nm is used, there is no need for any special eye or skin protection. The stained gel places in its’ plastic tray and ready-to-observation when putting on the device platform. μBLooK™ is designed to inspect the gel, stained with the Novel Juice, Novel Green, Novel Green Plus after electrophoresis. Further, it is perfectly designed for OnePCR™, OnePCR™ HiFi, OnePCR™ HotStar, which contains the fluorescent stain compatible with the blue light wavelength. *However, μBLooK™ is not suitable for ethidium bromide. Specifications Color - White｜Black Size(LxWxH) - 193mm x 196mm x 33mm Gel Viewing Dimensions (LxWxH) - 99mm x 119mm x10mm Disk (LxWxH) - 86mm x 114mm 10mm Weight - 500g Input voltage - 100-240V, 50/60 Hz Output voltage - 12V, 1.5A(18W) LED source - Built-in blue light LED module LED life (hours) - >30000 hrs Emission maxima(nm) - 470 nm Store temperature - 25℃ Operating temperature - Ambient to 40℃
