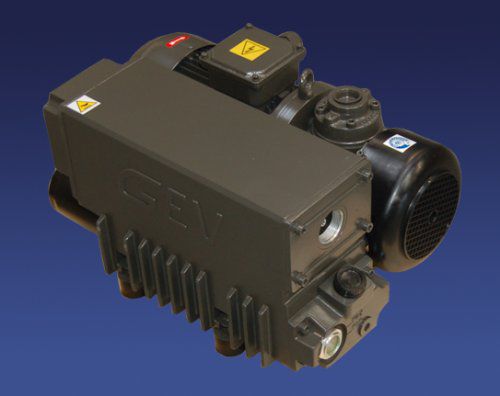

Laboratory vacuum pump GPK-GPK/M 45, GPK-GPK/M 65rotary vane
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory
- Technology
- rotary vane
- Flow
45 m³/h, 54 m³/h, 65 m³/h, 78 m³/h
(1,589.16 ft³/h, 1,906.99 ft³/h, 2,295.45 ft³/h, 2,754.54 ft³/h)- Power
1.1 kW, 1.5 kW, 1.8 kW
(1.5 hp, 2.04 hp, 2.45 hp)- Pressure
1.5 mbar, 14 mbar
(0.02 psi, 0.2 psi)
Description
The GPK- GPK/M is the compact version of GP-GP/M.
Their smaller size allows them to work even in small spaces.
TECHNICAL FEATURES:
GPK/M max vacuum 0.5MbarAbs;
displacements from 11 to 300 m3/h;
displacements upon request 400-600-750-1000 m3/h;
air cooled;
oil mist eliminators at discharge;
oil filter, standard non return valve;
optionals: min oil level switch, max liquid level switch, gasballast valve; paper, inox and oil sump suction filters vacuum adjustment valve; discharge thermal switch.
