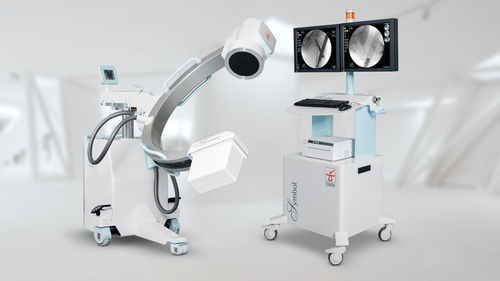

Mobile C-arm Symbol R9

with video column

A highly innovative portable C-Arm system for digital fluoroscopy and radiography, Symbol provides utmost reliability, operational efficiency and improved workflow. Its exceptional design combined with the high contrast image intensifier and the wide configuration availability ensure high quality and DICOM complaint images in a variety of procedures. The “smart dose” feature plays a central role in guaranteeing exceptional results while upholding the patient’s safety. Digital video chain Symbol R9’s monoblock generator with stationary and rotating X-ray tube anode is paired with 9” or 12” high contrast image intensifier. All operational parameters are managed through a control panel equipped with an intuitive colour touchscreen. Manoeuvrability The system’s compact design and reduced weight provide easy, precise and safe manoeuvrability. Thanks to the wide counterbalanced movements, light weight and high precision of the anodized aluminium C-Arm, Symbol R9 is suited for a variety of applications, especially in the operating room. Operator friendly Ergonomic design and intuitive interface, consisting of a touchscreen control panel, allow the operator complete and easy control of all operational parameters. Symbol R9’s overall reduced dimensions and light weight ensure easy displacement by the operator. Digital processing Thanks to the advanced digital image processing software and wide memory capacity Symbol R9 provides real-time and post-processing adjustments, such as virtual collimation and edge enhancement, without exposing the patient to X-rays. The double monitor screen medical grade workstation allows for ease and safety of use for operators and patients.
