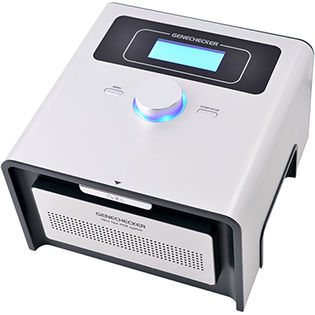

Gradient thermal cycler GENECHECKER® UF-100

compact

DNA amplification in 20 minutes. Features Patented chip based design and ultra-fast ramping provides extremely rapid output. “40 cycles in 20 minutes” Innovative PCR device at an affordable price Intuitive control with LED indicated jog-dial and LCD display Small footprint (20cm x 20cm x 12.5cm) ideal for bench-top operation Increased sample capacity (16 samples) provides better efficiency. 01 The best tool to make your PCR application faster and easier GENECHECKER®operates with special polymer chip (Rapi:hip™) which enables even faster thermal treatment of samples in it than the case of using PCR tubes for conventional PCR instruments. 8 °C/sec ramping rate can be achieved for both heating and cooling through unique thermal cycling mechanism of GENECHECKER® 02 State-of-the-art hardware technology achievedgreat performance and cost effectiveness. The patented technical know-how of Genesystem applied to the model UF-100 thermal cycler is optimized for design and production of PCR device and publicly awarded Grand Prize at KINPEX the most prestigious competition for high-end inventions. SPECIFICATION Operating Mechanism Precise Control of Peltier Element Temperature Accuracy ± 0.5°C Temperature Uniformity ± 0.5°C (Well to Well) Temperature Stability ± 0.5°C Ramping Rate 8.0°C/ second Range of Temperature Setting 35 ~ 65°C (1.0°C Increment) for RT Step / 20 ~ 99°C (1.0°C Increment) for PCR Sample Format Polymer based 3-Dimensional Microfluidic Chip Number of Sample per Run 16 Required Sample Volume 10μl
