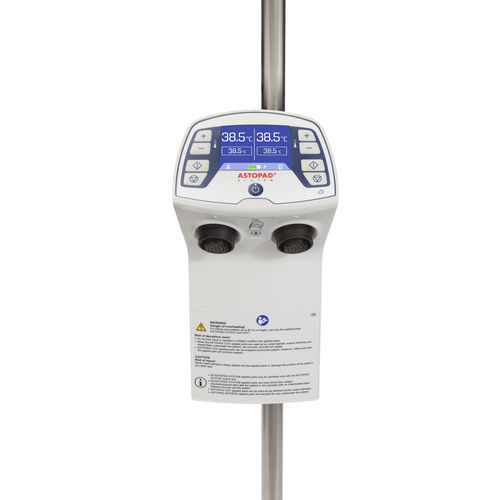

Surgery unit patient warming system ASTOPAD® DUO310

radiolucent

Change the way you think about patient warming with ASTOPAD. This resistive patient warming system enables virtually silent and air-flow-free active warming to help the patient maintain their normothermic temperature throughout the perioperative journey for all surgical patients. The ASTOPAD blanket is a soft, flexible, reusable and comfortable pad that utilizes Gentherm’s Carbotex® heating technology. The versatile pad can also be used as a patient warming blanket. Each blanket has 8 sensors embedded throughout to prevent hot spots and ensure patient safety. It can be battery operated, is radiolucent for medical X-ray and can be used in nearly any patient positioning scenario. The temperature settings of the controller range from 32°C – 39°C and can be set individually in precise 0.5°C increments. Controller Dimensions 300mm H x 155mm W x 130mm D Battery Dimensions 22mm H x 77mm W x 150mm D Weight (without battery) 2.0kg Weight (with battery) 2.5kg Heating System Heater Power 160 Watts Electrical System Electrical Connection 100-240 VAC; 50-60 Hz 24 VDC Rated Current 110V = 1.6 Amps / 240V = .8 Amps Heater Power 160 Watts Time to Heat 23°C to 37°C in approximately 10 minutes Power Cord Approximately 250cm PVC Cable Features Integrated rechargeable battery with 2 hours of continuous use which allows for warming during transport 2 independently controlled blanket connections enabling full body warming 8 sensors in each blanket designed to limit hot spots while maximizing energy transfer Does NOT interfere with HF Surgical Instruments Blankets can be wrapped around the patient while in use allowing for versatility in positioning
